Product introduction

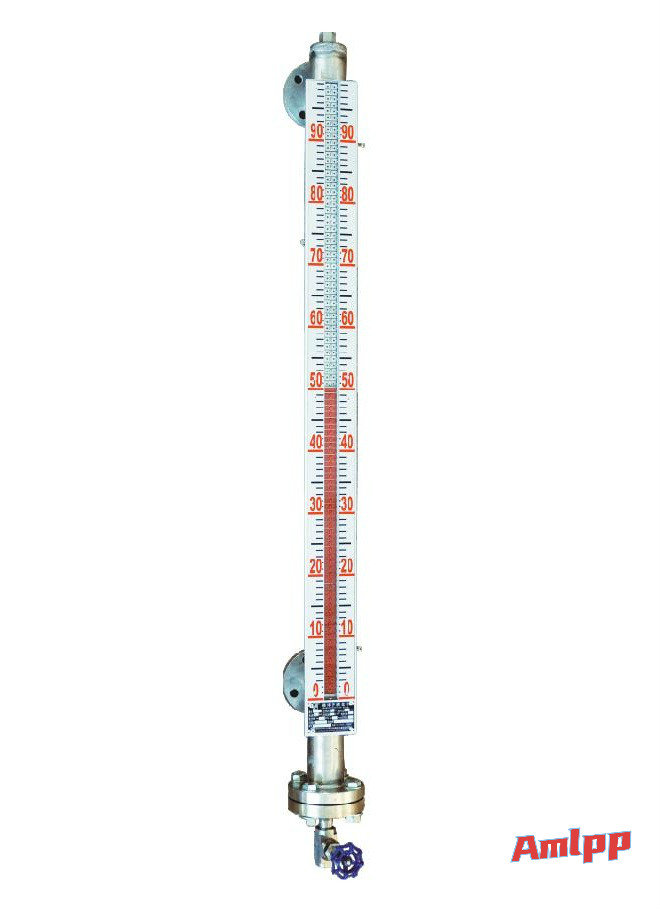

UHC series magnetic float level gauge
The basic principle of the magnetic float level gauge is the principle of the communicating device. The display principle is: the float equipped with permanent magnetic steel rises and falls with the liquid level in the riser of the level gauge, and the turning column on the indicator outside the riser (commonly known as the turning plate rack) is driven to turn over through magnetic coupling. When rising, the turning column turns from white to red; when falling, the turning column turns from red to white, and the liquid level is indicated by steam white liquid red. Due to its unique principle and lightweight structure, the magnetic float level gauge is widely used, especially in large center distance, strong corrosion and toxic and harmful media.

The basic principle of the magnetic float level gauge is the principle of the communicating device. The display principle is: the float equipped with permanent magnetic steel rises and falls with the liquid level in the riser of the level gauge, and the turning column on the indicator outside the riser (commonly known as the turning plate rack) is driven to turn over through magnetic coupling. When rising, the turning column turns from white to red; when falling, the turning column turns from red to white, and the liquid level is indicated by steam white liquid red. Due to its unique principle and lightweight structure, the magnetic float level gauge is widely used, especially in large center distance, strong corrosion and toxic and harmful media.

The main technical parameters
● Nominal pressure ≤25MPa
● Working temperature ≤450℃
● Center distance 300~6000mm
● Medium density≥0.45g/cm3
Flange standard HG20592-0635-97

Features
● Less dense, safe and reliable
● The indicator is flexible and credible, and there will never be false indications.
● Magnets are permanent magnets.
● The adjustment of the observation direction is very convenient.
● The measurement range is large, and the indication accuracy is high.
● Lightweight. In most cases, no maintenance is required.
● Complete varieties, which can be used for liquid media under various working conditions.
● On-site remote transmission function is complete, can be equipped with transmitter and liquid level switch.
● There are many product accessories options, users can choose according to their needs
