Product introduction

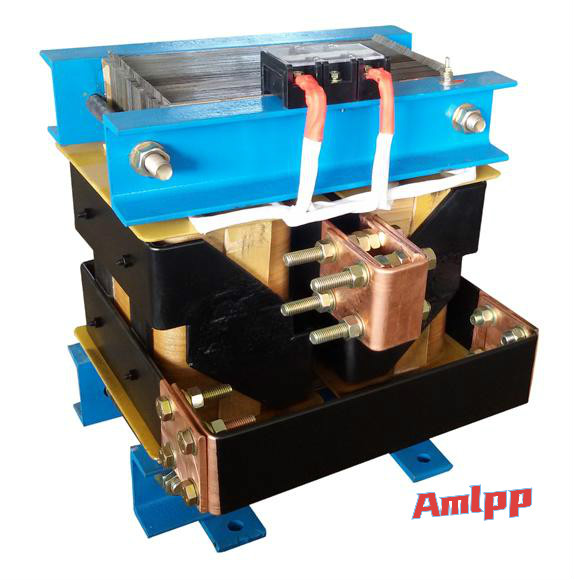

Single-phase high-current transformer


Scope of application

DDG series single-phase low-voltage high-current transformers (leakage plate transformers) are mainly used for high-current generators, current transformers, circuit breakers, contactors, thermal breakers, switches, etc., as temperature rise tests. Power supply for protection characteristic test, continuous load test and electrical parameter measurement test.



Technical features

This transformer is suitable for continuous working system, and the output voltage adopts safe voltage 3V, 6V, 9V, 12V, 15V, 24V, 36V, etc.



Normal working conditions

1. Installation height does not exceed 1000M

2. The highest temperature is 40 degrees Celsius, the highest daily average temperature is 30 degrees Celsius, the highest annual average temperature is 20 degrees Celsius, and the lowest temperature is -5 degrees Celsius.

3. There is no harmful smoke and steam, no excessive corrosive dust, water vapor, smoke, no severe damp, dripping place.
