Product introduction

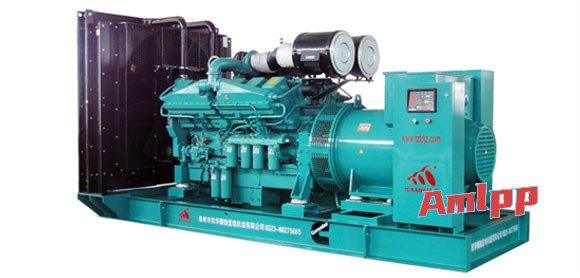

Cummins diesel generator KH-700GF

The diesel engine selected for Cummins diesel generator is provided by Cummins, a world diesel engine manufacturer. Cummins was founded in 1919 and is headquartered in Columbus, Indiana, USA. As a foreign investor in China's engine industry, Cummins owns manufacturing companies in China such as Chongqing Cummins Engine Co., Ltd. and Dongfeng Cummins Engine Co., Ltd. Cummins' global service network provides users with the fastest service guarantee.
Cummins Diesel Generator Set Series
B, C, L series Dongfeng Cummins generator
·It adopts Dongfeng Cummins B, C, L series engines, in-line 4-cylinder and 6-cylinder models. The displacement is 3.9L, 5.9L, 8.3L, 8.9L, etc., and the power coverage is 24KW-220KW, with advanced technology and reliable performance.

N, K series Chongqing Cummins generator
·Chongqing Cummins N and K series engines include in-line 6-cylinder, V-type 12-cylinder, V-type 16-cylinder and other models. The displacement is 14L, 18.9L, 37.8L and so on. Advanced technology, reliable performance, long continuous operation time, stable operation in various environments, and convenient maintenance and maintenance. Its power range is 200KW-1200KW, mainly used in mining, power generation, marine, rail cars and petroleum machinery.
Engine structural characteristics
(1) Most of them are equipped with the company's unique PT fuel system (except for the B and C series).
(2) All use ω combustion chamber.
(3) The cam followers are all rollers.
(4) Most of the fuel and oil passages are drilled in the cylinder block and cylinder head.
(5) Wet cylinder liner, which is phosphated.
(6) The crankshaft is forged with alloy steel, and the journal is induction hardened.
(7) All piston ring grooves are equipped with nickel alloy cast iron inserts to improve the life of the ring grooves.
Supply standard configuration
·Diesel engine (with all accessories, three filters, electrical system)
·Brushless Alternator
·Steel structure base
·Fan water tank cooling system
·24V starter motor and charging motor
·Air filter, diesel filter, oil filter
·Self-starting control panel (various protection functions)
·Air protection switch
·24V start battery and battery line
·Unit shock absorber
·High efficiency silencer for industry
· Random technical documents (unit manual, factory test report, original factory quality documents, etc.)
Optional configuration
·ATS automatic conversion cabinet
·Automatically combine cabinets (select British Deep Sea, Czech Komai or Danish modules)
·8-hour daily fuel tank
·Container type generator set
·Low noise generator set
·Trailer power station
·Remote Microcomputer Interface
·Run 500-1000 hours of spare parts


Model	Power		Diesel engine model	cylinder	Bore/stroke	Dis	F/C	mm	kg
					mm	(L)	g/kw.h
	KVA	KW
DCEC CUMMINS SERIES
KH-15GF	18.75	15	4B3.9-G2	4	102/120	3.9	209	1700*720*1200	900
KH-20GF	25	20	4B3.9-G2	4	102/120	3.9	209	1700*720*1200	900
KH-24GF	30	24	4B3.9-G2	4	102/120	3.9	209	1700*720*1200	900
KH-30GF	37.5	30	4BT3.9-G2	4	102/120	3.9	210	1800*720*1200	920
KH-40GF	50	40	4BTA3.9-G2	4	102/120	3.9	210	1800*720*1200	920
KH-50GF	62.5	50	4BTA3.9-G2	4	102/120	3.9	210	1800*720*1200	920
KH-64GF	80	64	6BT5.9-G2	6	102/120	5.9	206	2200*800*1300	1180
KH-75GF	93.7	75	6BT5.9-G2	6	102/120	5.9	206	2200*800*1300	1180
KH-90GF	112.5	90	6BT5.9-G2	6	102/120	5.9	207	2200*800*1300	1180
KH-100GF	125	100	6BTA5.9-G2	6	102/120	5.9	206	2250*830*1350	1200
KH-120GF	150	120	6BTAA5.9-G2	6	102/120	5.9	209	2250*830*1350	1350
KH-150GF	187.5	150	6CTA8.3-G2	6	114/135	8.3	209	2500*860*1350	2200
KH-160GF	200	160	6CTA8.3-G2	6	114/135	8.3	209	2600*880*1500	2500
KH-180GF	225	180	6CTAA8.3-G2	6	114/135	8.3	209	2600*880*1500	2500
KH-200GF	250	200	6LTAA8.9-G2	6	114/144	8.9	209	2600*900*1500	2500
CCEC CUMMINS SERIES
KH-200GF	250	200	NTA855-GA	6	140/152	14	206	3000*980*1760	2600
KH-250GF	312.5	250	NTA855-G1A	6	140/152	14	207	3100*980*1760	2900
KH-300GF	375	300	NTA855-G1B	6	140/152	14	207	3200*980*1760	3100
KH-300GF	375	300	NTA855-G2A	6	140/152	14	206	3200*980*1760	3100
KH-300GF	375	300	NTA855-G4	6	140/152	14	210	3200*980*1760	3100
KH-320GF	400	320	NTAA855-G7A	6	140/152	14	204	3400*1250*1970	3250
KH-360GF	450	360	NTAA855-G7A	6	140/152	14	204	3400*1250*1970	3250
KH-360GF	450	360	KTA19-G3	6	159/159	18.9	203.8	3400*1250*1970	3500
KH-400GF	500	400	KTA19-G3	6	159/159	18.9	203.8	3400*1250*1970	3500
KH-400GF	500	400	KTA19-G4	6	159/159	18.9	203.8	3400*1250*1970	3650
KH-450GF	562.5	450	KTAA19-G5	6	159/159	18.9	206	3500*1500*1900	3650
KH-500GF	625	500	KTAA19-G5	6	159/159	18.9	206	3500*1500*1900	3650
KH-500GF	625	500	KTAA19-G6A	6	159/159	18.9	203.8	3500*1500*1900	3650
KH-500GF	625	500	KTA19-G8	6	159/159	18.9	202.3	3500*1500*1900	3650
KH-600GF	725	600	QSK19-G3	6	159/159	19	203.8	4350*1630*2450	3700
KH-600GF	725	600	KTAA19-G7	6	159/159	18.9	206	4350*1630*2450	4500
KH-600GF	725	600	KTA38-G2	12	159/159	37.8	206	4350*1630*2450	4200
KH-650GF	812.5	650	KTA38-G2	12	159/159	37.8	206	4350*1630*2450	4200
KH-700GF	875	700	KTA38-G2	12	159/159	37.8	206	4350*1630*2450	4200
KH-750GF	937.5	750	KTA38-G2A	12	159/159	37.8	210	4500*1900*2450	8700
KH-800GF	1000	800	KTA38-G2A	12	159/159	37.8	210	4500*1700*2450	8700
KH-800GF	1000	800	KTA38-G5	12	159/159	37.8	201	4500*1700*2450	9350
KH-900GF	1125	900	KTA38-G5	12	159/159	37.8	201	4500*1900*2450	9350
KH-900GF	1125	900	KTA38-G9	12	159/159	37.8	201	4500*1900*2450	9500
KH-1000GF	1250	1000	KTA38-G9	16	159/159	37.8	201	4500*1900*2450	9600
KH-1000GF	1250	1000	KTA50-G3	16	159/159	50.3	202	5000*2000*2450	9800
KH-1200GF	1500	1200	KTA50-G3	16	159/159	50.3	202	5000*2000*2450	9800
KH-1200GF	1500	1200	KTA50-GS8	16	159/159	50.3	205	5600*2000*2450	10700
KH-1300GF	1625	1300	KTA50-GS8	16	159/159	50.3	205	5600*2000*2450	10700
KH-1500GF	1875	1500	QXK60-G3	16	159/190	60.2	191	5500*2200*2500	13000
KH-1800GF	2250	1800	QXK60-G4	16	159/190	60.2	193	5800*2300*2600	15000
