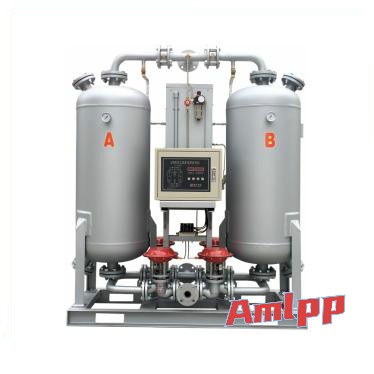

Product name:ADH micro heat regeneration dryer

Product introduction

ADH micro heat regeneration dryer

Rated processing gas volume 1~500Nm³/min
Working pressure 0.6~0.8MPa (available for 0.8~3.0MPa)
Inlet temperature <38℃
Pressure loss ≦0.02MPa
Finished product gas dew point -40℃ or -52℃
Ambient temperature 38℃
Regeneration air consumption ≦6%
working principle
The micro-heat regeneration air dryer is a product developed by absorbing the advantages of thermal regeneration and non-thermal regeneration. The regenerated gas regenerates the desiccant after raising the temperature, which can improve the regeneration effect and reduce the regeneration consumption. Air volume
Configuration function
▶Low regeneration air consumption and low energy consumption;
▶The dew point of the finished product is stable;
▶Microcomputer control, LCD, LED real-time display of equipment operating status;
▶Multiple fault diagnosis, alarm and automatic processing functions;
▶The heating control adopts non-contact solid-state switch, the temperature control overshoot is small, and the service life is long;
▶If the micro-heat operation mode fails, it can automatically switch to the non-heat operation mode (national patent technology)
▶With online parameter modification and protection functions;
▶Online dew point control function with national patent technology can maximize energy saving (can be equipped first);
▶Optional RS485/RS232 communication interface and joint control function.
Technical index
▶Rated processing gas volume: 1~500Nm³/min
▶Working pressure: 0.6-0.8MPa (0.8-3.0MPa available)
▶The dew point of finished product: ≦-40℃ or ≦-52℃
▶Inlet air temperature: <38℃
▶Environmental temperature: 38℃
▶Air consumption for regeneration: ≦6%
▶Pressure loss: ≦0.02MPa.
